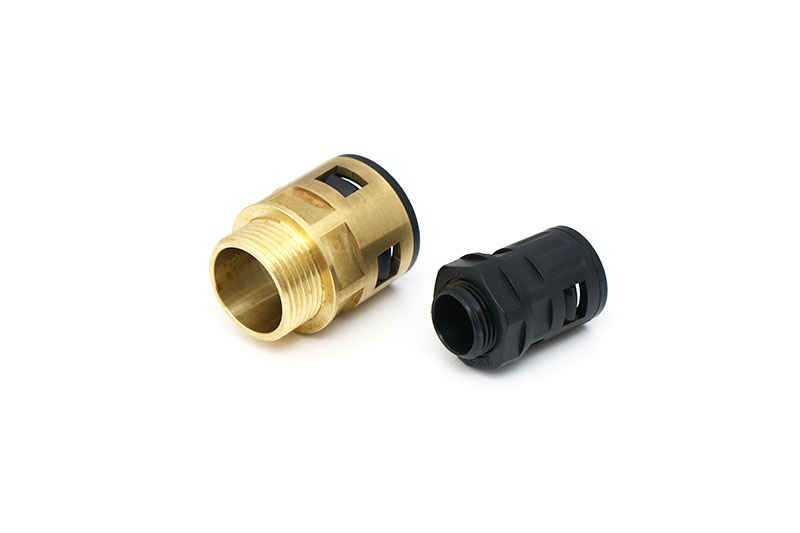

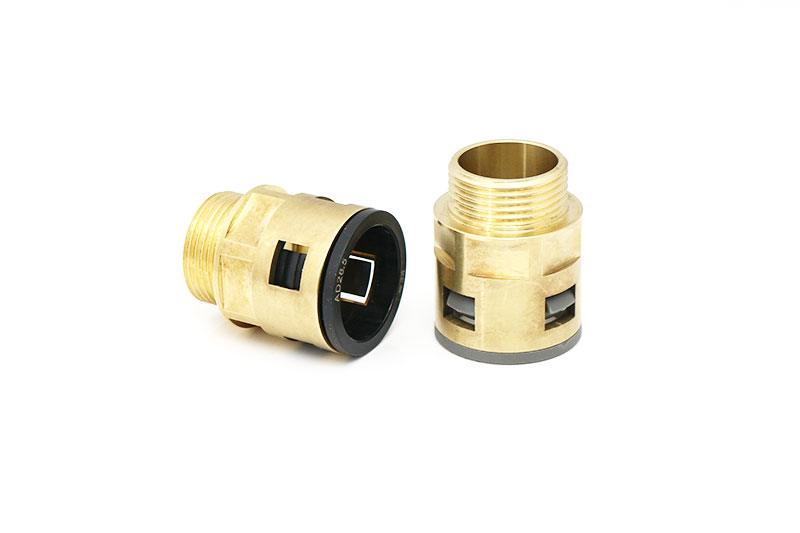

廠家供應各種規格尺寸金屬電纜防水接頭快速拔插軟管式索頭
分類：金屬電纜防水接頭
型號：SSQC
品牌：ATR
產地：寧波市奉化區
廠家：奉化市安泰爾電器有限公司
產品詳情
產品概述
我司生產的快速拔插軟管式金屬電纜防水接頭采用的材質為金屬本色或黃銅鍍鎳，其配套的塑料體顏色有黑色、灰白色兩種可選，滿足客戶整體顏色統一，它的防護等級可以達到IP67為止，工作溫度范圍相當廣從零下40℃到100℃，滿足不同場合的環境要求，極短時間甚至可以上升到120℃。
技術參數
SSQC-AD/M 公制螺紋
| 規格型號 | 螺紋規格 | 適配軟管 | 螺紋長度C | 孔徑 | 外徑 | 總長 | 扳手尺寸 |
| SSQC-AD10.0/M12 | M12*1.5 | AD10.0 | 10 | 7 | 17 | 34.5 | 15 |
| SSQC-AD13.0/M16 | M16*1.5 | AD10.0 | 9.5 | 10 | 20.2 | 36 | 18 |
| SSQC-AD15.8/M18 | M18*1.5 | AD15.8 | 9.5 | 12 | 23.2 | 38 | 21 |
| SSQC-AD18.5/M20 | M20*1.5 | AD18.5 | 11 | 14.5 | 26.2 | 40 | 24 |
| SSQC-AD20.0/M20 | M20*1.5 | AD20.0 | 13 | 16 | 29 | 45 | 27 |
| SSQC-AD21.2/M20 | M20*1.5 | AD21.2 | 13 | 15.5 | 29.7 | 45 | 27 |
| SSQC-AD21.2/M24 | M24*1.5 | AD21.2 | 13 | 17 | 29.7 | 45 | 27 |
| SSQC-AD21.2/M25 | M25*1.5 | AD21.2 | 13 | 17 | 29.7 | 45 | 27 |
| SSQC-AD25.0/M25 | M25*1.5 | AD25.0 | 13 | 20 | 33 | 45 | 30 |
| SSQC-AD28.5/M25 | M25*1.5 | AD28.5 | 13 | 20.5 | 37.4 | 48 | 34 |
| SSQC-AD28.5/M27 | M27*2.0 | AD28.5 | 13 | 22.5 | 37.4 | 48 | 34 |
| SSQC-AD28.5/M30 | M30*2.0 | AD28.5 | 13 | 23.5 | 37.4 | 48 | 34 |
| SSQC-AD28.5/M32 | M32*1.5 | AD28.5 | 13 | 23.5 | 37.4 | 48 | 34 |
| SSQC-AD34.5/M32 | M32*1.5 | AD34.5 | 12 | 26 | 44 | 51 | 40 |
| SSQC-AD34.5/M36 | M36*2.0 | AD34.5 | 12 | 30 | 44 | 51 | 40 |
| SSQC-AD34.5/M40 | M40*1.5 | AD34.5 | 12 | 28.5 | 44 | 51 | 40 |
| SSQC-AD42.5/M40 | M40*1.5 | AD42.5 | 14 | 33 | 52 | 54 | 48 |
| SSQC-AD42.5/M48 | M48*2.0 | AD42.5 | 14 | 36.5 | 52 | 54 | 48 |
| SSQC-AD42.5/M50 | M50*1.5 | AD42.5 | 14 | 36.5 | 52 | 54 | 48 |
| SSQC-AD54.5/M50 | M50*1.5 | AD54.5 | 14.5 | 43 | 64 | 55 | 59 |
| SSQC-AD54.5/M63 | M63*1.5 | AD54.5 | 14.5 | 43 | 64 | 55 | 59 |
SSQC-AD/P PG制螺紋
| 規格型號 | 螺紋規格 | 適配軟管 | 螺紋長度C | 孔徑 | 外徑 | 總長 | 扳手尺寸 |
| SSQC-AD10.0/P7 | PG7 | AD10.0 | 10 | 7 | 17 | 34.5 | 15 |
| SSQC-AD13.0/P9 | PG9 | AD13.0 | 9.5 | 10 | 20.2 | 36 | 18 |
| SSQC-AD15.8/P11 | PG11 | AD15.8 | 9.5 | 12 | 23.2 | 38 | 21 |
| SSQC-AD18.5/P13.5 | PG13.5 | AD18.5 | 11 | 14 | 26.2 | 40 | 24 |
| SSQC-AD21.2/P16 | PG16 | AD21.2 | 13 | 17 | 29.7 | 43.5 | 27 |
| SSQC-AD28.5/P21 | PG21 | AD28.5 | 13 | 23.5 | 37.4 | 48 | 34 |
| SSQC-AD34.5/P29 | PG29 | AD34.5 | 12 | 30 | 44 | 51 | 40 |
| SSQC-AD42.5/P36 | PG36 | AD42.5 | 14 | 36.5 | 52 | 54 | 48 |
| SSQC-AD54.5/P48 | PG48 | AD54.5 | 14.5 | 48 | 64 | 55 | 59 |
SSQC-AD/G G制螺紋
| 規格型號 | 螺紋規格 | 適配軟管 | 螺紋長度C | 孔徑 | 外徑 | 總長 | 扳手尺寸 |
| SSQC-AD10.0/G1/4 | G1/4 | AD10.0 | 10 | 7 | 17 | 34.5 | 15 |
| SSQC-AD13.0/G3/8 | G3/8 | AD13.0 | 9.5 | 10 | 20.2 | 36 | 18 |
| SSQC-AD15.8/G3/8 | G3/8 | AD15.8 | 9.5 | 12 | 23.2 | 38 | 21 |
| SSQC-AD15.8/G1/2 | G1/2 | AD15.8 | 11 | 12.5 | 26.2 | 40 | 24 |
| SSQC-AD21.2/G1/2 | G1/2 | AD21.2 | 13 | 15 | 29.7 | 43.5 | 27 |
| SSQC-AD28.5/G3/4 | G3/4 | AD28.5 | 13 | 20.5 | 37.4 | 48 | 34 |
| SSQC-AD34.5/G1 | G1 | AD34.5 | 12 | 25.5 | 44 | 51 | 40 |
| SSQC-AD42.5/G1 1/4 | G1 1/4 | AD42.5 | 14 | 35 | 52 | 54 | 49 |
| SSQC-AD54.5/G1 1/2 | G1 1/2 | AD54.5 | 14.5 | 39 | 64 | 55 | 59 |
| SSQC-AD54.5/G2 | G2 | AD54.5 | 14.5 | 48.5 | 64 | 55 | 65 |
